Fully automatic dosing system for additive to product line

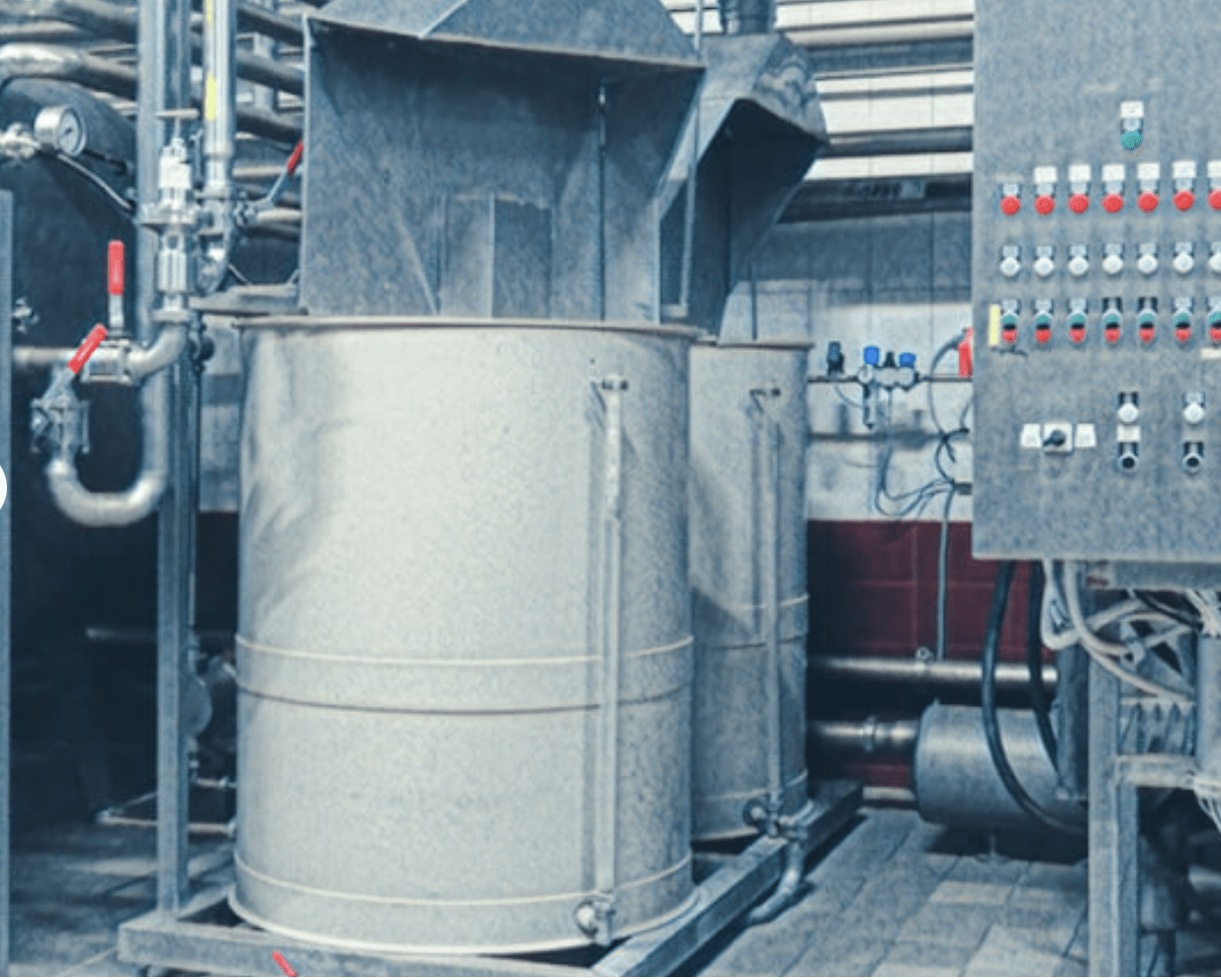

Operator can control the process from one place. System is assembled from following components:

Tank manufactured from stainless steel AISI 304L (equipped with vertical impeller);
Piping for supply of CO2, de-aerated water, ready additive prepared by system, CIP solution;
Control valves;
Dosing pump;
Level sensors, flowmeter, pressure transmitter, etc.
Control cabinet;
Service platform.

We apply high quality valves from leading manufacturer GEA Gmbh (Germany) https://www.gea.com/. All valves are supplied with pneumatic actuators and position indicators. For automation of process cooking and dosing tank is supplied with pressure transmitter, level sensor for high and low levels, safety switch on manhole. Supply of prepared solution of additive is done by peristaltic pump Watsons Marlow – https://www.watson-marlow.com. Quantity and dosing rate is controlled by flowmeter. Dosing rate is managed by frequency controller in automatic mode within set parameters. Connection to product line is made with double seat valves that allows to dose in 2 different lines. During CIP process seat can be flashed. All sensors are from leading manufacturer Endress&Hauser (Switzerland) – https://www.endress.com/.

All process for dosing system are fully automatic. Control cabinet is supplied with Siemens PLC and electrical components. Dosing system is integrated in SCADA system that control all technological processes.
