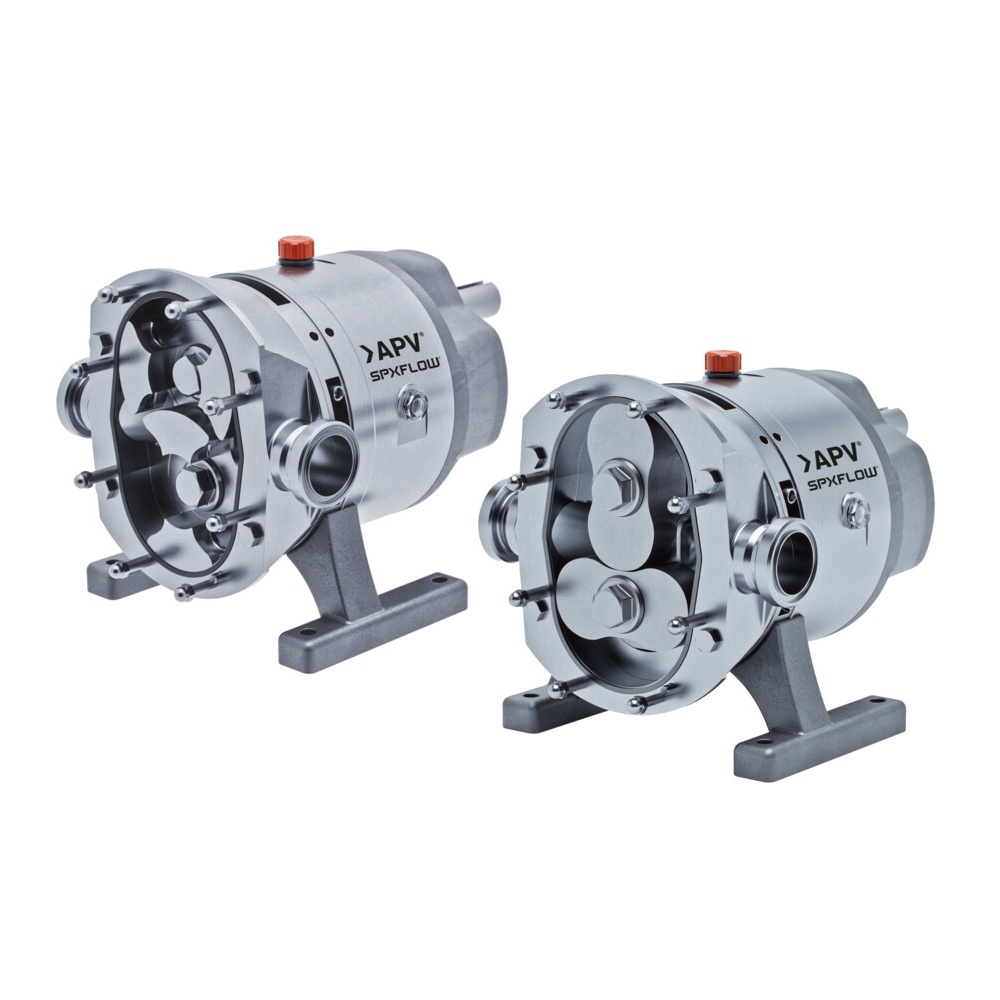

DW+ Series – Piston & Bi-Lobe Rotor Pumps

DW+ Series – Piston & Bi-Lobe Rotor Pumps


Order

Product Type: Positive Displacement Pumps

Description:
The DW+ Series is a highly adaptable positive displacement pump, engineered for the efficient handling of high-viscosity and shear-sensitive fluids. Its low-shear, pulsation-free operation ensures a smooth and gentle product flow, while also simplifying maintenance. Designed to meet the strict sanitary requirements of the dairy, food, beverage, pharmaceutical, personal care, chemical, and general industrial sectors, it combines hygienic performance with improved operational efficiency.

DW+ Series – Advanced Positive Displacement Pump Technology for Hygienic Applications

Building on the proven legacy of the DW Series, the DW+ Series represents the next evolution in positive displacement pump technology. Designed with a strong focus on the needs of dairy, beverage, food, brewing, confectionery, and pharmaceutical industries, these pumps offer enhanced performance, exceptional reliability, and simplified maintenance – all while ensuring product integrity in the most demanding sanitary processes.


Key Benefits for Hygienic Production

  • Gentle Product Handling

    The DW+ Series is engineered for high-value, shear-sensitive applications. Its unique rotor designs — particularly the piston rotor — create an extended sealing path that significantly minimizes shear and mechanical stress. This ensures delicate products retain their texture, consistency, and sensory qualities, making it ideal for applications like cream, yogurt, chocolate, syrup, and pharmaceutical emulsions. By protecting viscosity-sensitive ingredients, the DW+ helps reduce product loss and ensures premium quality.
  • Pulse-Free Operation for System Safety

    Thanks to the innovative piston rotor design, the DW+ ensures a smooth, pulse-free flow. This eliminates vibrations, pressure spikes, and noise, which helps protect downstream equipment like filling machines, dosing systems, and heat exchangers. The result is a stable, uninterrupted process and extended equipment life — critical in automated production lines in the beverage and pharma sectors.
  • Low NPSHr for Demanding Processes

    The low Net Positive Suction Head requirement (NPSHr) of DW+ pumps makes them ideal for applications prone to cavitation, such as ultrafiltration in dairy, or transferring thick confectionery masses. The design ensures continuous, cavitation-free operation even in challenging suction conditions.
  • High Volumetric Efficiency

    DW+ pumps deliver excellent volumetric efficiency, even with medium to high-viscosity fluids. Optimized internal clearances (optional “Super Tight” rotors) and high operating speeds allow for a more compact pump selection — reducing both footprint and total cost of ownership. This makes them perfect for sugar solutions, malt extracts, syrups, and pharmaceutical suspensions.
  • Non-Galling Alloy (NGA) Rotors

    Optional non-galling alloy (NGA) rotors allow even tighter internal clearances, minimizing downtime and preventing housing damage under harsh operating conditions. This ensures maximum reliability in continuous production environments such as dairy and beverage processing.
  • Ultra-Hygienic and CIP-Ready

    DW+ pumps are fully CIP/SIP cleanable, featuring a profiled front cover gasket for improved cleanability. Built to withstand aggressive cleaning cycles and rapid temperature shifts, the DW+ Series meets the highest standards of hygiene demanded by the food and pharma industries.

Global Compliance and Recognition

The DW+ Series is globally approved and trusted in hygienic systems across the world. It is:

  • 3-A certified

  • EHEDG compliant

  • Integrated into thousands of systems under the SPX FLOW / APV umbrella

With a solid reputation for handling high-viscosity and sensitive products, DW+ pumps are a go-to solution for manufacturers seeking hygienic excellence, reduced maintenance, and consistent product quality.

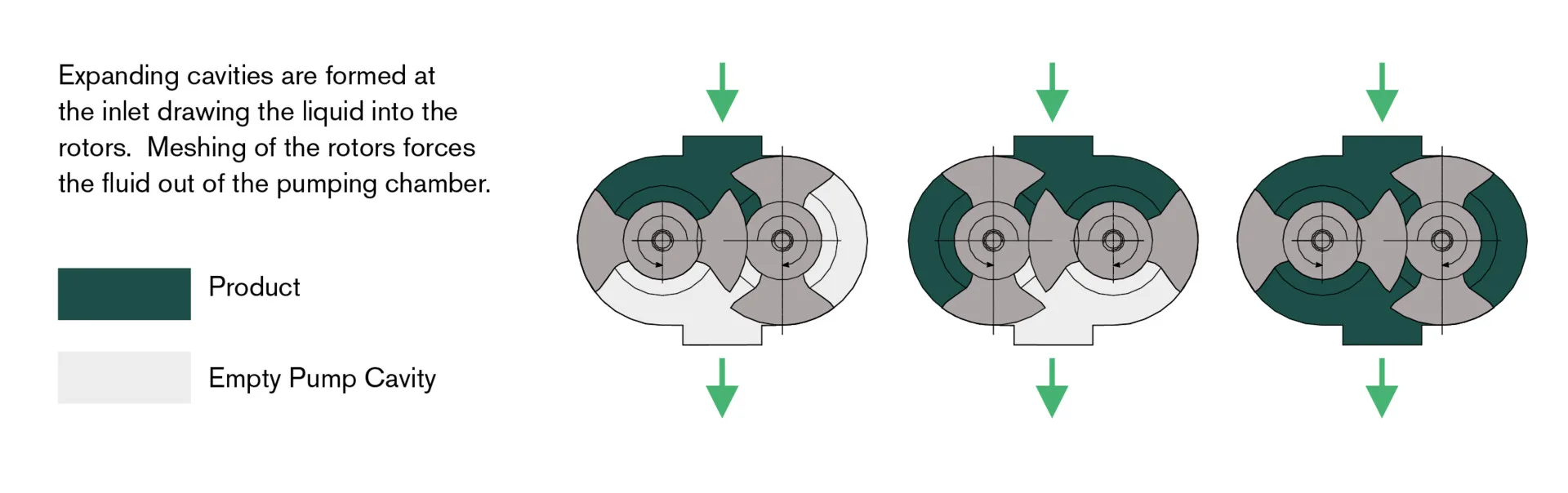

Theory of Operation – APV DW+ Positive Displacement Pump

The APV DW+ operates on the principle of rotary positive displacement, using either piston or bi-lobe rotors to gently transfer high-viscosity and shear-sensitive liquids. The pump draws fluid into expanding cavities at the inlet side, then displaces it forward as the rotors rotate and intermesh, forcing the liquid out through the discharge. This mechanism ensures a smooth, pulse-free flow, minimizing vibration, pressure surges, and product degradation.

Rotor Options for Application Flexibility

Piston Rotors feature a long sealing path, ideal for maintaining low shear and energy-efficient performance. This design enhances flow control and is particularly beneficial for delicate, high-value products such as dairy creams, pharmaceutical gels, and confectionery fillings.

Bi-Lobe Rotors are available for applications that involve larger particles or suspended solids, offering gentle handling while maintaining efficient transfer — a great solution for sauces, yogurt with fruit, or chemical slurries.

Hygienic Design with Tight Clearances

To support ultra-hygienic processing, the DW+ integrates non-galling alloy rotors, allowing for minimal internal clearances without the risk of rotor-to-housing damage. This not only improves volumetric efficiency but also ensures long-term durability in high-demand applications.

Mechanical Enhancements for Reliability

Helical gears and double-tapered roller bearings are incorporated to reduce operational noise and increase system robustness.

◾ An integrated pressure relief valve protects both the pump and the system from overpressure events.

◾ A thermal jacket option is available to maintain consistent product temperature — ideal for temperature-sensitive media like chocolate or creams.

Engineered for CIP/SIP and Low NPSH Conditions

The DW+ pump is fully compatible with Clean-In-Place (CIP) and Sterilize-In-Place (SIP) protocols, making it suitable for strict hygienic environments such as food, dairy, beverage, and pharmaceutical production. Maintenance is simplified with front-loading mechanical seals, and the pump’s low NPSH requirement helps prevent cavitation, even in challenging suction conditions.


In summary, the DW+ combines precision engineering, hygienic performance, and application versatility — making it a trusted solution for manufacturers seeking gentle handling, reliability, and efficiency across critical processing lines.

Elastomer Material
EPDM. FPM and FKKM (Perfluoro elastomer)

Standard Connections
Tri-clamp is the standard connection. Other sanitary and industrial fittings are available.

2 Rotor materials
316L and Non-galling alloy

2 Rotor Options by Type

Piston and Bi-lobe rotors. On the smallest model in each size, the piston rotors can be easily replaced with bi-lobe rotors without altering the rotor case. Additionally, the pump’s porting can be switched between horizontal and vertical orientations (and vice versa) without requiring any modifications to the pump or the use of a specialized gear case assembly.

4 Rotor Options by Application

  • Multi Duty Rotors
    Standard rotors suitable for most applications. The clearance is greater than that of the high efficiency rotors.
  • High-Efficiency Rotors
    Designed for low viscosity products. The size of the rotors has been increased, and the clearance is minimal.
  • High Temperature Rotors
    The Bi-lobe rotors can be supplied as high temperature rotors, suitable for product temperatures up to 180°C (356°F). The rotors are smaller for expansion due to the temperature.
  • Super tight Rotors

Minimum clearance in all the options to make minimum product slip back.

6 Advanced Shaft Seal Design

The pump offers a variety of front-loaded interchangeable shaft seals tailored for specific applications:

  • Single Mechanical Seal.
  • Flushed single Mechanical Seals
  • Flushed double Mechanical Seals
  • Lip Seals
  • Confectionary Seals
  • Packed Gland Seal:


3 Accessories

  • Integrated Pressure Relief Valve
  • Thermal Jacket
  • Rectangular Inlet


Certificates

  • Material Heat Certificate
  • 2.1 EN10204
  • 2.2 EN10204
  • 3.1 EN10204
  • Certified Approval Drawing
  • GA drawing 2D (*pdf)
  • Pump Model 3D (*stp)
  • ISO 9001 Certification
  • GOST certificate
  • 3A Certificate
  • RA measurement Report
  • Electro-Polish/Passivation Certificate
  • Food Contact Certificate
  • NPSH Test (one duty)
  • FDA Seal Certification

The DW+ pump series is designed for ultra-hygienic applications. The range consists of 6 sizes (27 models) with capacities ranging from 3 liters/100 revs to 519 liters /100 revs (0.8 gal/100 revs to 137 gal/100 revs) and pressures up to 30 bar (435 psi). All product-contact parts are made from AISI 316L stainless steel and all elastomers comply with FDA-requirements.

There are two types of rotors available: Piston and Bi-lobe. For general or standard applications, the Bi-lobe rotor is typically a suitable solution. However, the piston rotor is the optimal choice for shear-sensitive products due to its long sealing path and minimal clearance design.
