GEA HILGE DURIETTA
The Solid Pump for Applications in the Food and Beverage Industries
The GEA Hilge DURIETTA is designed in compliance with food technology requirements, making it ideal for jobs where hygiene is a key concern. For example, it is CIP- and SIP-capable with the performance characteristics outlined for pumps in DIN 12462.

Food & Beverage

  • Microbreweries and dairies
  • Bottling systems
  • Food processing plants
  • Drinking water systems
  • CIP systems

Pharmaceutical and Related Industry

  • Personal care industries
  • CIP systems

Other Industrial Applications

  • Semi-conductor manufacturing
  • Heat exchangers

GEA Hilge offers various seal arrangements:

  • Single mechanical seal
  • Double mechanical seal (tandem)

The standard mechanical shaft seal has an optimum position in the pump housing. This ensures lubrication, cleaning and cooling of the mechanical seal in accordance with the criteria of hygienic design.

GEA Hilge offers threads to DIN 11851 as standard for GEA Hilge DURIETTA pumps.

  • Threads SMS
  • Threads DIN 11864-1
  • Flanges EN 1092-1 (DIN 2642)
  • Flanges DIN 11864-2
  • Clamps TRI-CLAMP

Other connections are available on request.

The GEA Hilge DURIETTA has semi-open impellers, which allows easy and sufficient cleaning.
The GEA Smartpump Line for your Standard Applications
The GEA Hilge DURIETTA pump in the GEA Smartpump linie is the right choice for your applications under hygienic conditions. The range of these single- and multi-stage sanitary pumps allows you to choose between several standard variants to suit your task.

GEA Hilge DURIETTA K: Horizontal installation, closed-coupled pump with plug-in shaft
GEA Hilge DURIETTA K-SUPER: Horizontal installation, motor with stainless steel shroud on stainless steel foot, closed-coupled pump with plug-in shaft

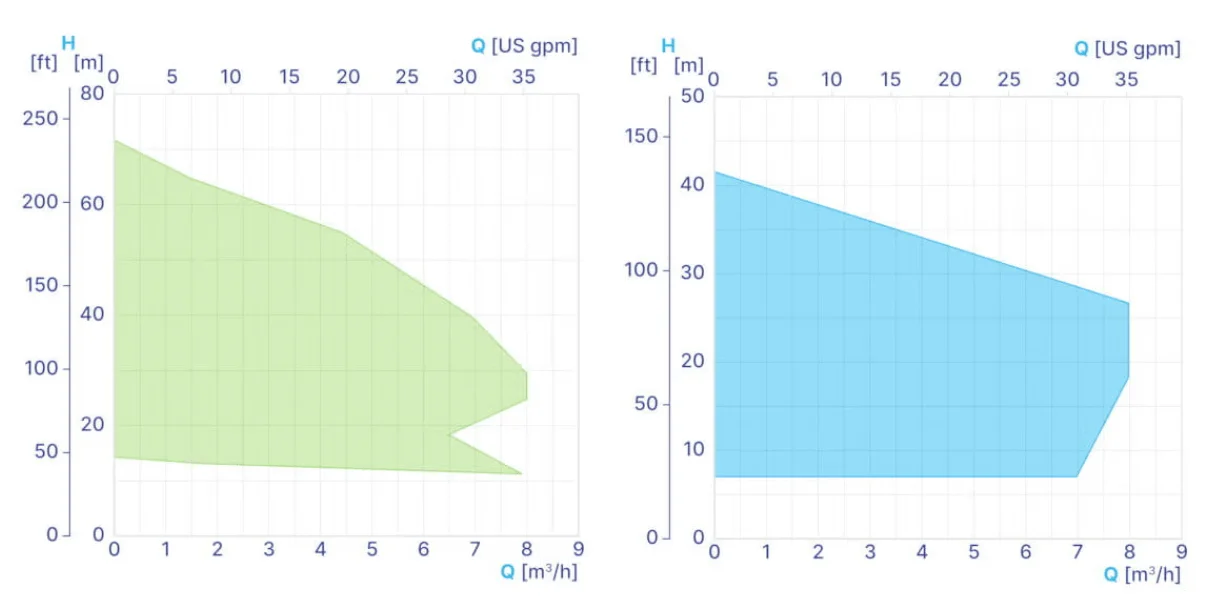

GEA Hilge DURIETTA 50 Hz
Flow:8 m³/h
Head: 75 m
Liquid temperature: 95 °C
Operating pressure: max. 8 bar

GEA Hilge DURIETTA 60 Hz
Flow: 8 m³/h
Head: 42 m
Liquid temperature: 95 °C
Operating pressure: max. 8 bar
