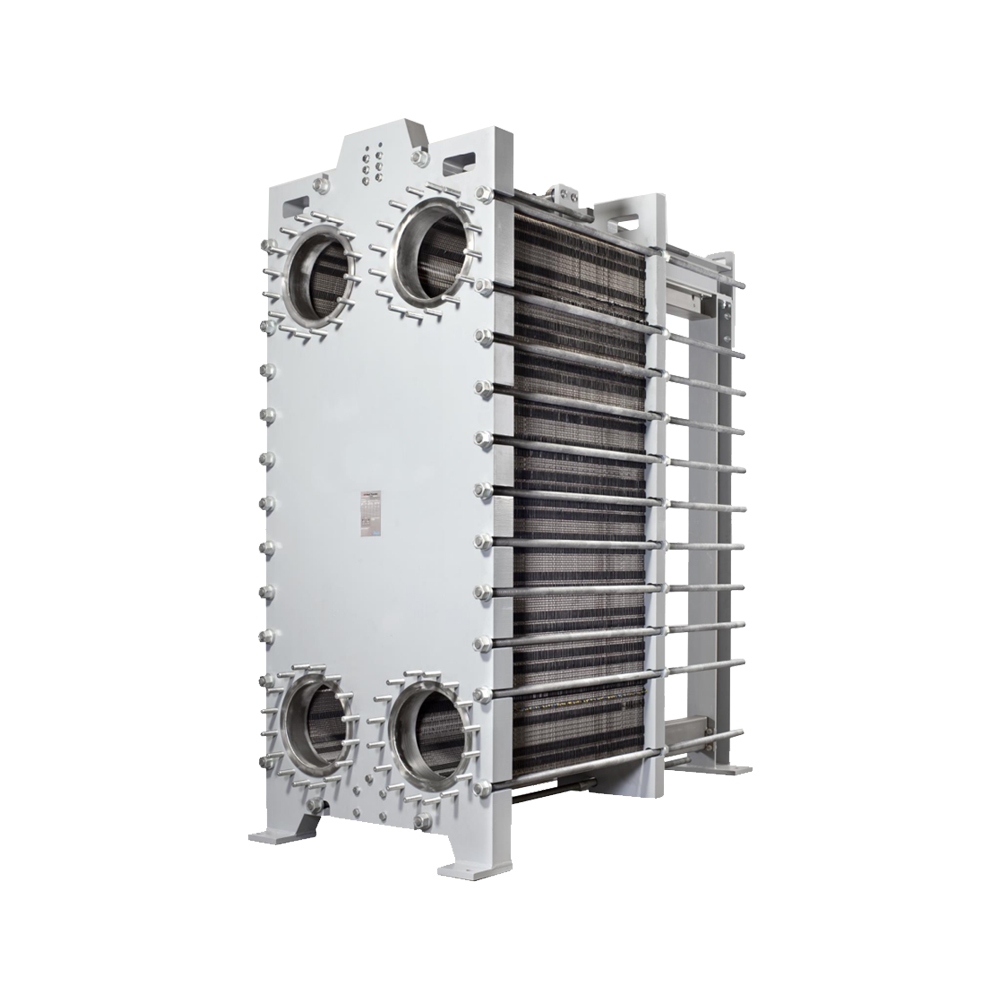

SIGMA® Gasketed Plate Heat Exchanger M206 / M306 API Schmidt
SIGMA® Gasketed Plate Heat Exchanger M206 / M306 API Schmidt
Order
Product Type: Gasketed Plate Heat Exchangers
Description:
SIGMA M206 / M306 are new models in the SIGMAFIT series, designed for high-capacity operations. They handle flows up to 4,750 m³/h and provide a heat transfer area of up to 2,500 m² per unit. Applications include process industries, power generation, HVAC systems, and even marine environments.
Plates are available in AISI 304, 316L, 316Ti, and titanium alloys, with gaskets in NBR or EPDM. The glue-free gasket system is rated up to 25 bar, ensuring reliability and easy maintenance. Plate area: M206 ≈2 m², M306 ≈3 m²; connection size — 20″. Corrugation type “fishbone” is available in hard, medium, and soft designs for different thermal performance needs.
Specifications
| Parameter | Value |
|---|---|
| Capacity | up to 4,750 m³/h |
| Heat transfer area (per unit) | up to 2,500 m² |
| Plate materials | AISI 304, 316L, 316Ti, titanium alloys |
| Gasket materials | NBR or EPDM |
| Gasket fixing system | Glue-free, up to 25 bar |
| Plate area | M206 ≈2 m² / M306 ≈3 m² |
| Connections | 20″ |
| Corrugation type | “Fishbone”: high / medium / low thermal pattern |
| Applications | Process industry, power, HVAC, marine conditions |
Key advantages and features
- Very high throughput — up to 4,750 m³/h
- Large heat transfer area — up to 2,500 m²
- Marine condition resistance
- Reliable glue-free gasket system (up to 25 bar)
- Large plate size for efficient heat transfer
- Corrugation variants for different thermal duties
- Broad industrial applications
