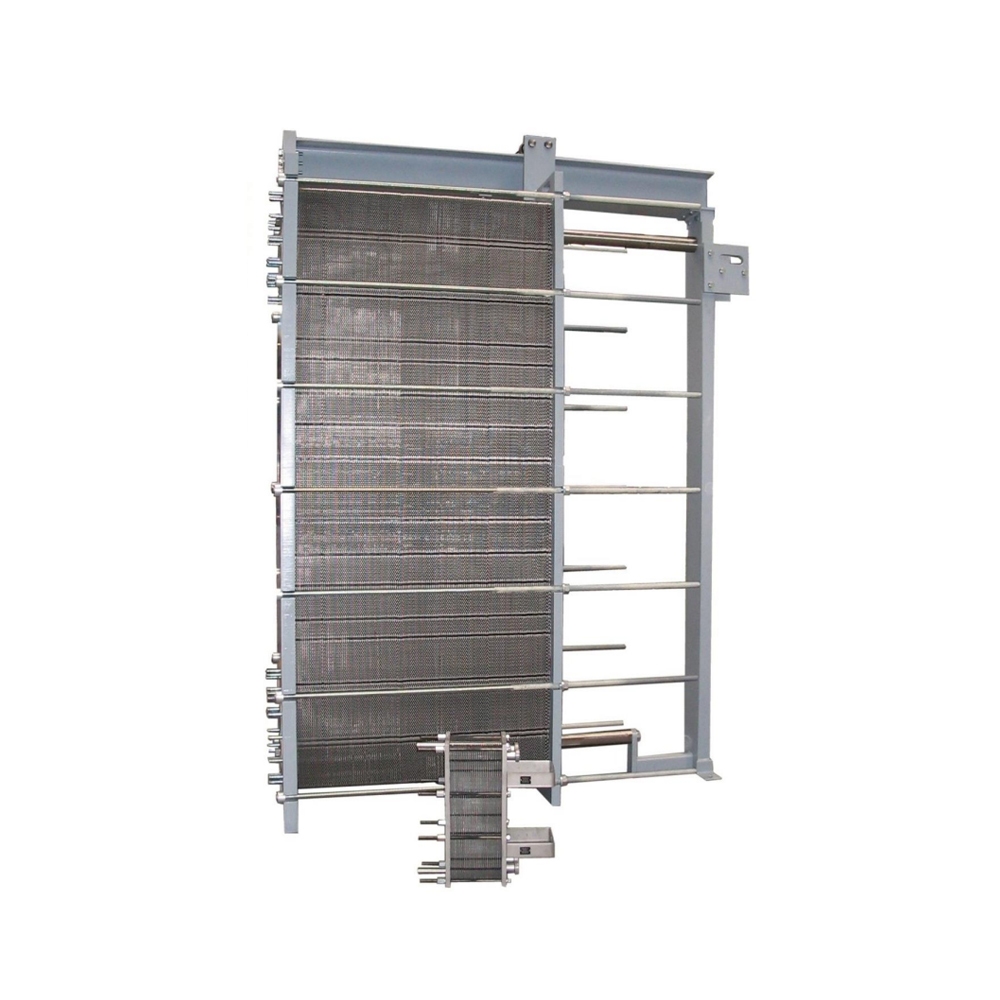

SIGMA® Gasketed Plate Heat Exchanger M229 API Schmidt
SIGMA® Gasketed Plate Heat Exchanger M229 API Schmidt
Order
Product Type: Gasketed Plate Heat Exchangers
Description:
SIGMA M229 is a high-performance model in the SIGMAFIT series, designed for liquid processing with capacities up to 2,000 m³/h. Each unit provides a heat transfer area of up to 1,400 m², handling media with particle sizes up to 3 mm and viscosities up to 10,000 cP. Ideal for process industries, power generation, and HVAC applications. Equipped with the SIGMAFIX gasket system (glue-free), reliable up to 25 bar.
Specifications
| Parameter | Value |
|---|---|
| Capacity | up to 2,000 m³/h |
| Heat transfer area (per unit) | up to 1,400 m² |
| Max. particle size | up to 3 mm |
| Max. viscosity | up to 10,000 cP |
| Gaskets | SIGMAFIX (glue-free, up to 25 bar) |
| Plate area | 2.35 m² |
| Connections | DN 350 |
| Corrugation type | “Fishbone” (rigid / medium / soft) |
Key advantages and features
- High heat transfer efficiency with large surface area
- Easy maintenance with SIGMAFIX system
- Handles viscous media and particles up to 3 mm
- Flexible corrugation designs for different duties
- Reliable performance in demanding industrial conditions
