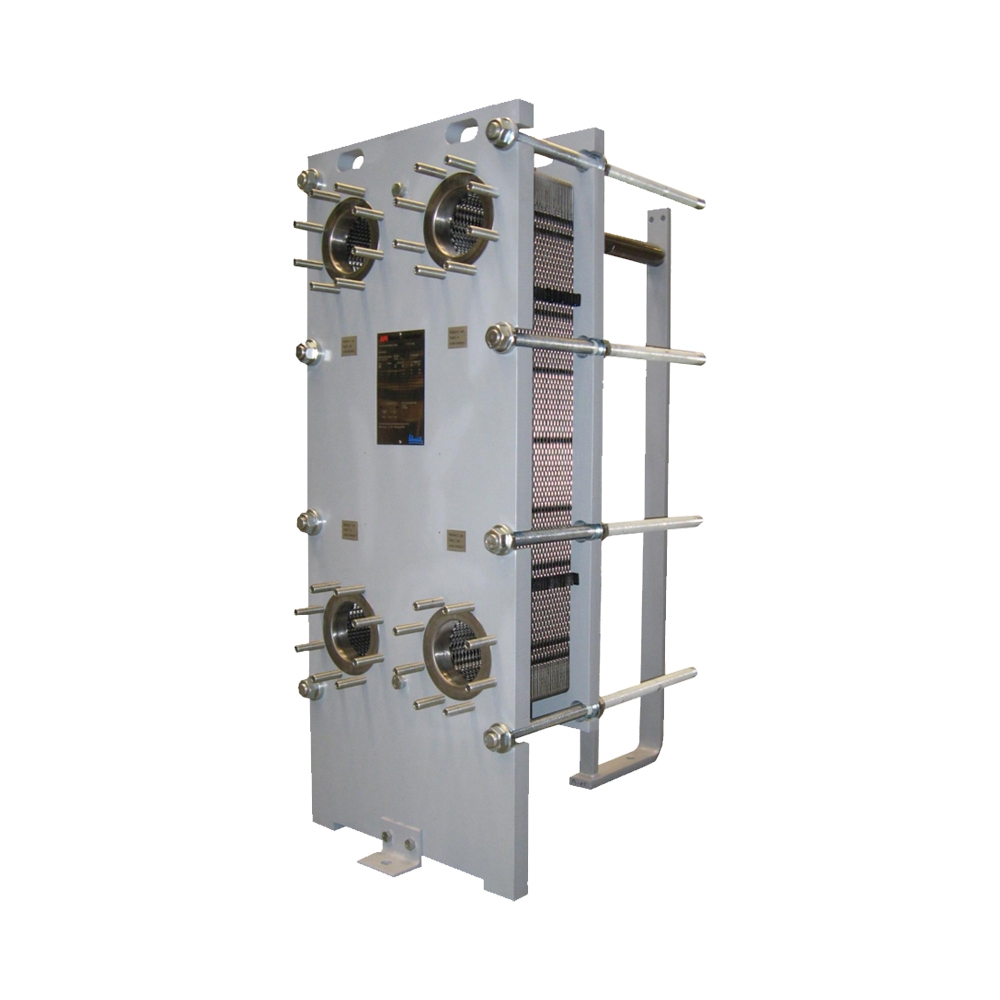

SIGMA® Gasketed Plate Heat Exchanger M25 / M35 API Schmidt
SIGMA® Gasketed Plate Heat Exchanger M25 / M35 API Schmidt
Order
Product Type: Gasketed Plate Heat Exchangers
Description:
SIGMA M25 / M35 is part of the SIGMAFIT series from API Schmidt-Bretten. Designed for flows up to 200 m³/h, each unit provides a heat transfer surface of up to 200 m². Ideal for food, beverage, HVAC, and general process industries. Maximum operating pressure — 25 barg.
Specifications
| Parameter | Value |
|---|---|
| Maximum flow | up to 200 m³/h |
| Heat transfer area | up to 200 m² |
| Maximum operating pressure | 25 barg |
| Plate and gasket materials | Various options (all common materials) |
| Gasket fixing system | SIGMAFIX (glue-free) |
| Applications | Food, beverage, HVAC, process industries |
Key advantages and features of SIGMA® heat exchangers
-
High heat transfer due to unique corrugated plates with turbulent flow
-
Compact design and low liquid hold-up — larger heat transfer area with smaller footprint
-
Reliable sealing with SIGMAFIX clip system or glued gaskets; double-seal protection against leakage and mixing
-
Easy maintenance — quick opening for CIP cleaning, gasket or plate replacement
-
Modular design — easy capacity adjustment by adding/removing plates
-
Self-cleaning effect thanks to turbulence
-
Wide range of applications: food, chemical, pharmaceutical, and more
